RMU Microdot Stylus Types | CANADA, USA, MEXICO

Light marking with high graphic resolution. Best suited for plastics, nameplates, & smooth aluminum surfaces

Good for marking on tempered materials and on curved, shaped surfaces that can use a difference of 14mm tip to surface 'jump'

Light marking on flat surfaces and when high speed marking is required

Very deep marking up to 1mm, suitable for rough surfaces and where coatings will be applied after marking

Extended version of the TP6 to enhance the reach for deep marking on varying surfaces.

Electromagnetic stylus for marking when air supply is not available or not designed into a system

Stylus Selection Chart
Stylus Model	Surfaces	Use/Characteristics

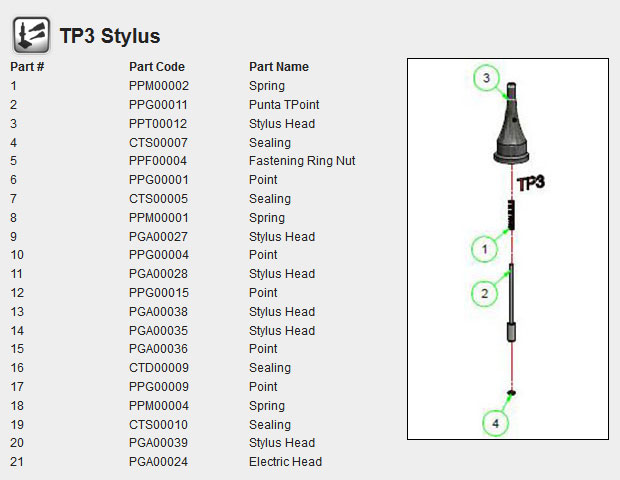

TP3	Plastic, Steel, Aluminum	Fine marking - 9mm surface variance

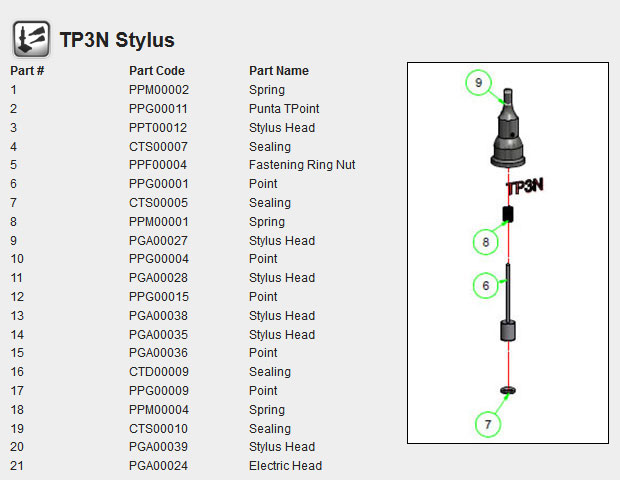

TP3N	Plastic, Steel, Aluminum, Cast	Distinct Marking - 14mm surface variance

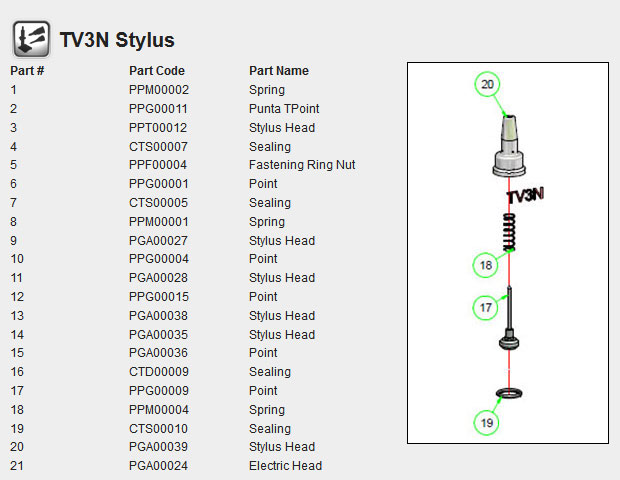

TV3N	Plastic, Steel, Aluminum	Fast Marking - 3mm surface variance
TP6	Steel, Castings, Aluminum	Deep Mark - 14mm surface variance

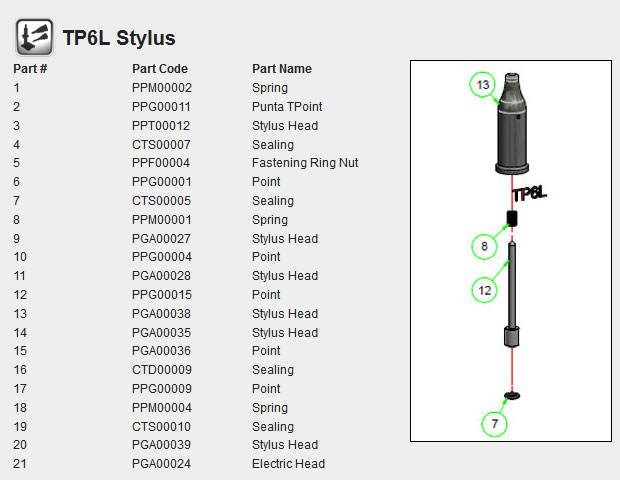

TP6L	Steel, Castings, Aluminum	Deep Mark - 16mm surface variance
TP6G	Hollow Steel Parts	Scribe Marking - 5mm surface variance

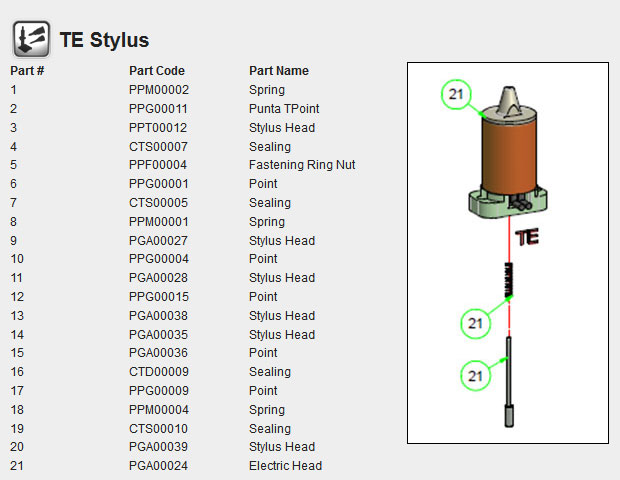

TE (Electromagnetic)	Steel, Titanium, Aluminum	Fine Marking Flat Surfaces - Low Volume Duty

Microdot Stylus Types Available
