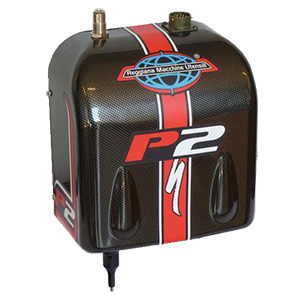

P2 - 100 x 35mm
Compact and handy, the microdot percussion marker model P.2 is well suited for integration within automation production lines as well as fully portable hand-held marking unit for those 'take the marker to the part' cases when required. Also capable of deep marking to allow coating of part surfaces afterwards
Marking Specifications:
| Working Area: | 100 x 35mm |
| Stylus actuation available: | MicroDot percussion Pneumatic vibration Electromagnetic |
| Speed of marking: | up to 6 characters per second |
| MicroDot percussion variance capability: | 14mm height difference |
| Max. Surface material hardness: | up to 64 HRC |
| Weight of Unit: | 2.4 Kg |
