Stylus Selection Chart |
|
Stylus Model |
Surfaces |
Use/Characteristics |
 |
TP3 |
Plastic, Steel, Aluminum |
Fine marking - 9mm surface variance |
| TP3N |
Plastic, Steel, Aluminum, Cast |
Distinct Marking - 14mm surface variance |
| TV3N |
Plastic, Steel, Aluminum |
Fast Marking - 3mm surface variance |
-->
| TP6 |
Steel, Castings, Aluminum |
Deep Mark - 14mm surface variance |
| TP6L |
Steel, Castings, Aluminum |
Deep Mark - 16mm surface variance |

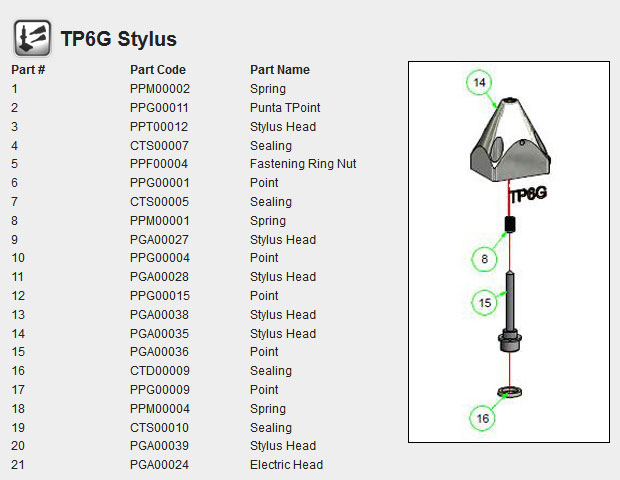

| TP6G |
Hollow Steel Parts |
Scribe Marking - 5mm surface variance |
|
TE (Electromagnetic) |
Steel, Titanium, Aluminum |
Fine Marking Flat Surfaces - Low Volume Duty |
Note: Click each stylus type for exploded view of each stylus with a list of part numbers
