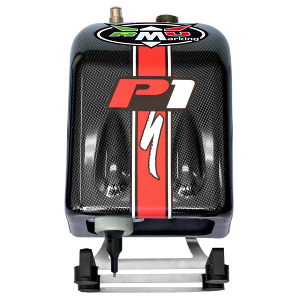

P1p - 65 x 35mm

Compact and handy, the microdot percussion marker model P1p is well suited as a fully portable hand-held marking unit for those 'take the marker to the part' cases when required. The fully adjustable bracket and feet allow for marking on varied part shapes.

Marking Specifications:

Working Area:	65 x 35mm
Stylus actuation available:	MicroDot percussion Pneumatic vibration Electromagnetic
Speed of marking:	up to 6 characters per second
MicroDot percussion variance capability:	14mm height difference
Max. Surface material hardness:	up to 64 HRC
Weight of Unit:	2.1 Kg
